Genau Mid Shaft Machine: Precise In-Situ Machining.

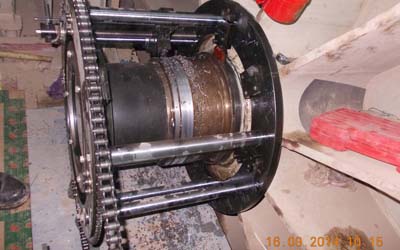

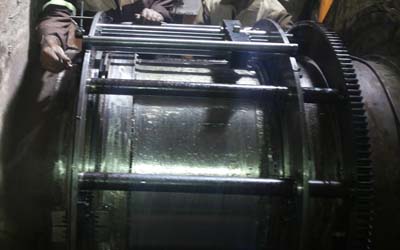

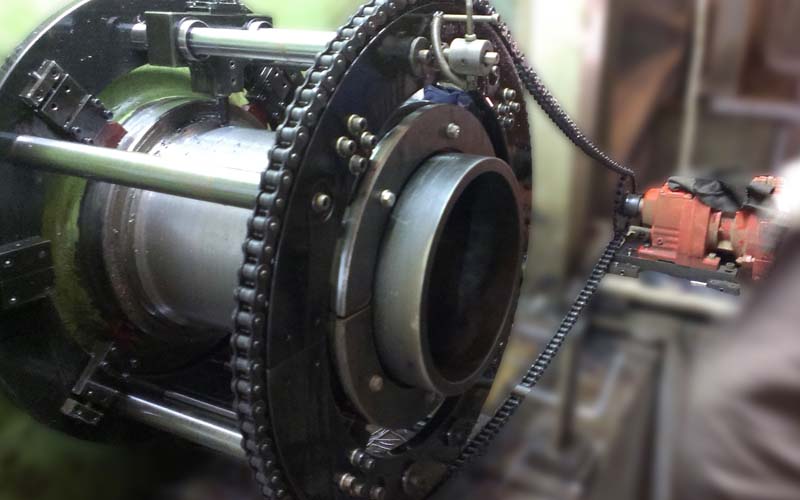

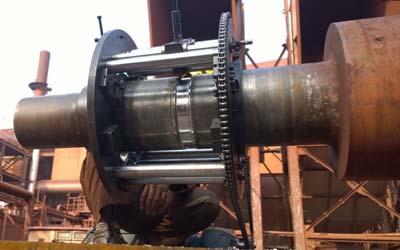

Genau's Mid Shaft Machine (GMSM) offers a cutting-edge solution for performing Outer Diameter (OD) machining of shafts directly in their installed location, eliminating the need for costly and time-consuming disassembly. Its state-of-the-art design uniquely allows it to be positioned and secured at any point along the shaft's length. This adaptability enables precise machining of grooves, steps, and overall surface finishing on the shaft's OD, bringing accuracy and efficiency directly to your in-situ repair and maintenance operations.

The GMSM boasts a versatile setup, capable of being mounted in horizontal, vertical, and inclined orientations to accommodate various shaft configurations. Furthermore, its machining stroke can be extended as needed to suit specific application requirements. Constructed for heavy-duty use while remaining manageable for operators, the GMSM is driven by either a hydraulic or electric motor, ensuring efficient material removal. Its wide range of applications spans diverse industries such as power generation, steel manufacturing, shipbuilding and repair, mining, cement, sugar, and heavy engineering, making it ideal for machining shafts, journals, pinions, squirrel cages, rope drums, and more.
